Brand Name : Supermicro
Model Number : SYS-820GP-TNAR+
Place of Origin : Beijing, China
MOQ : 5
Price : $93,600-112,250
Form Factor : 8U Rackmount

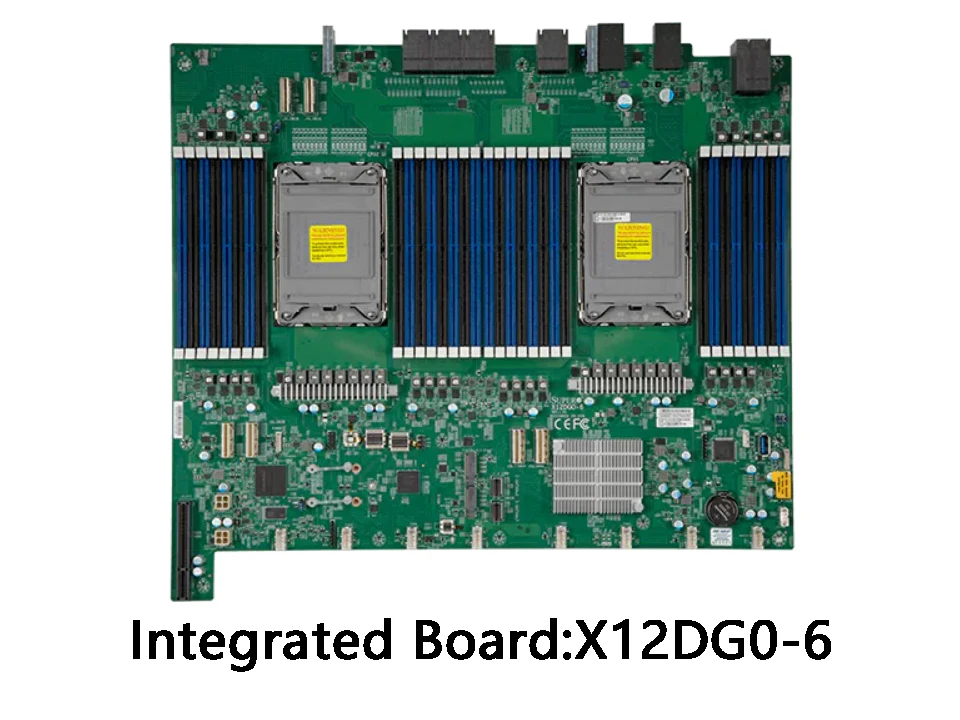

Motherboard Model : Super X12DGO-6
CPU Type : 3rd Gen Intel Xeon Scalable Processors
Max GPU Count : 8 double-width GPUs
Supported GPU : Intel OAM: Gaudi 2
Memory Capacity : Up to 8TB
Memory Speed : 3200MT/s ECC DDR4 RDIMM/LRDIMM
Chipset : Intel C621A
BIOS Type : AMI 32MB SPI Flash EEPROM
Power Supply : 1x 3000W Redundant Titanium Level (96%)
Chassis Model : CSE-GP802TS
Dimensions : 29.5" (H) x 27.5" (W) x 51.2" (D)
Drive Bays : 6x 2.5" Hot-swap NVMe/SATA/SAS
M.2 Slots : 2 NVMe and SATA for boot drive
PCIe Slots : 10 PCIe Gen 4.0 X16 LP Slots



Specifications | ||||||||
MODEL | SuperServer SYS-820GP-TNAR+ | |||||||
Form Factor | 8U Rackmount | |||||||
Motherboard | Super X12DGO-6 | |||||||
CPU | 3rd Gen Intel Xeon Scalable Processors | |||||||
Max GPU Count | Up to 8 double-width GPUs | - | ||||||
Supported GPU | Intel OAM: Gaudi 2 | |||||||
Memory | Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM | |||||||
Chipset | Intel C621A | |||||||
BIOS Type | AMI 32MB SPI Flash EEPROM | |||||||
Power | Power-on mode for AC power recovery | |||||||
Power Supply | 1x 3000W Redundant Titanium Level (96%) power supply | |||||||
Chassis Model | CSE-GP802TS | |||||||
Dimension (WxHxL) | 29.5" (H) x 27.5" (W) x 51.2" (D) | |||||||
If you need more models, Please contact us. | ||||||||























|
|

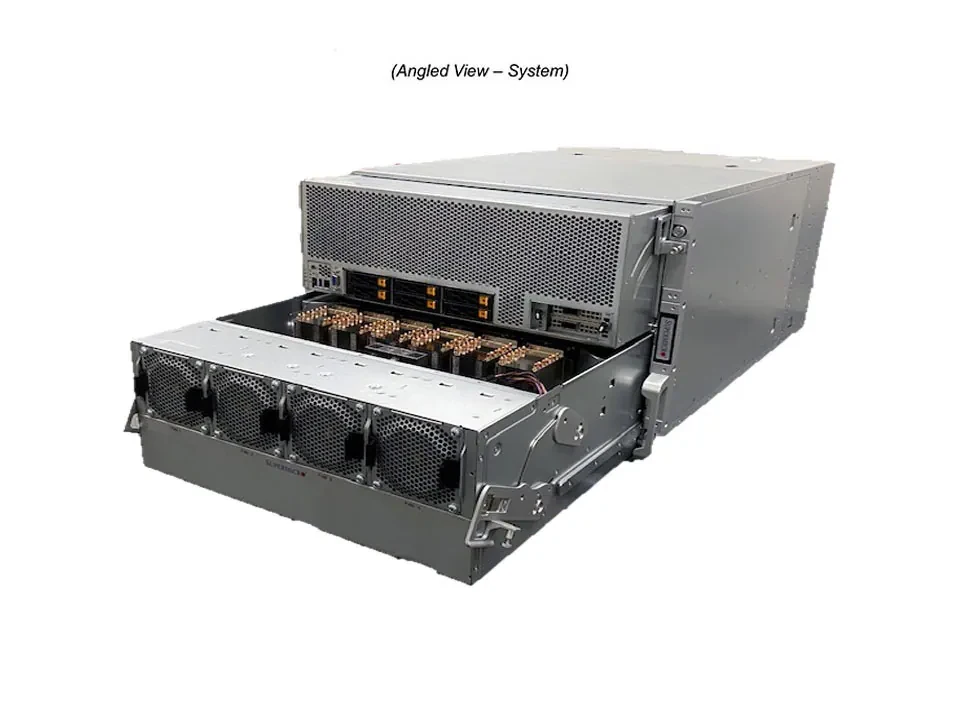

Original Supermicro 8U GPU Server with 8x A100 GPUs and 32 DIMM Slots for AI HPC Images |
