Brand Name : Supermicro
Model Number : SYS-421GE-TNRT
Place of Origin : Beijing, China
MOQ : 1
Form Factor : 4U Rack Server
Memory Slots : 32 DDR4 DIMM Slots
Power Supply : 800W
Processor Count : 4 Xeon Scalable Processors
Hard Drive : 1.2 TB SAS 10000Rpm
Dimensions : 26.57" (H) x 27" (W) x 41" (D)
Net Weight : 65.5 lbs (29.7 kg)
Gross Weight : 100 lbs (45.3 kg)

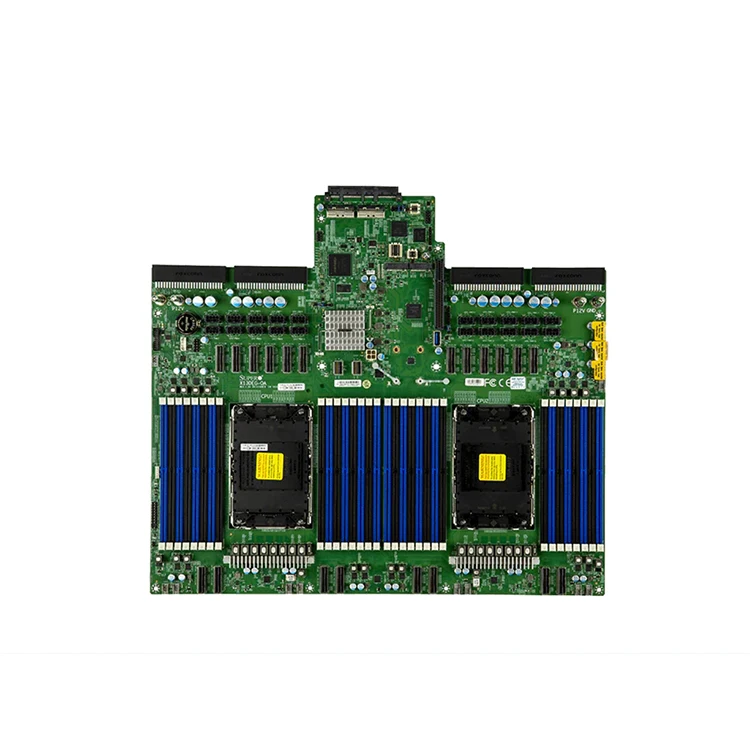

Motherboard : Super X13DEG-OA
CPU Socket : Dual Socket E (LGA-4677)
Max GPU Count : Up to 10 double-width or 10 single-width GPU(s)
Max Memory : Up to 8TB 4400MT/s ECC DDR5 RDIMM
Video Port : 1 VGA port(s)
BIOS Type : AMI 32MB SPI Flash EEPROM
Redundant Power : 2700W Redundant Power Supplies with PMBus



Specifications | ||||||||
MODEL | SYS-421GE-TNRT | |||||||
Form Factor | 4U Rackmount | |||||||
Motherboard | Super X13DEG-OA | |||||||
CPU | Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor support | |||||||
Max GPU Count | Up to 10 double-width or 10 single-width GPU(s) | - | ||||||
Supported GPU | NVIDIA PCIe: H100, L40, RTX A4000, RTX 6000 Ada Generation, L40S, A100, A10 Intel PCIe: Data Center GPU Max 1100 | |||||||
Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM | |||||||
Video | 1 VGA port(s) | |||||||
BIOS Type | AMI 32MB SPI Flash EEPROM | |||||||
Power | Power-on mode for AC power recovery | |||||||
Power Supply | 2700W Redundant Power Supplies with PMBus | |||||||
configurations | ACPI Power Management | |||||||
Dimension (WxHxL) | 73.5 x 40 x 203 mm | |||||||
Warranty | 3 years | |||||||
If you need more models, Please contact us. | ||||||||




















|
|
